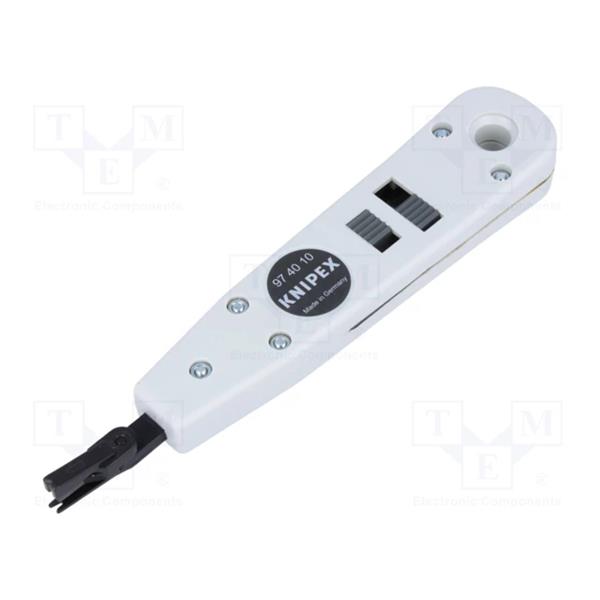

Knipex 97 40 10 Insertion Tool For LSA-Plus And Identical Construction Design

The Knipex 97 40 10 is a compact, 175mm punch-down tool designed for efficient insertion and cutting of wires into LSA-Plus and similar IDC (Insulation Displacement Connector) blocks. It combines two functions—pushing down and cutting—in a single operation, streamlining the termination process for UTP and STP cables.

Features:
Dual Functionality: Simultaneously pushes down and cuts wires, enhancing efficiency.
Integrated Pulling Hook: Facilitates easy removal of wires from connectors.
Release Blade: Allows for quick and safe wire release when needed.
Impact-Resistant Plastic Housing: Ensures durability and longevity.
Burnished Head: Provides a smooth finish to reduce wear and tear.
Specifications:
Length: 175 mm
Weight: 100 g
Conductor Diameter: 0.4 – 0.8 mm
Material: Plastic body with burnished head
Applications:
Ideal for professionals working with structured cabling systems, the Knipex 97 40 10 is suitable for:
Terminating wires into LSA-Plus and similar IDC blocks.
Efficiently inserting and cutting wires in one motion.
Handling UTP and STP cables with conductor diameters ranging from 0.4 to 0.8 mm.
Includes:
1 × Knipex 97 40 10 Insertion Tool
1 × Spare Tip (Model: 97 40 10 E01)
